How to Build a Custom Lithium Battery Pack?

Table of Contents

Creating a custom lithium battery pack involves several considerations, from understanding your specific power requirements to selecting the right components and ensuring safety. Whether you’re building a battery pack for a DIY project, a commercial product, or a specialized application, follow these steps to ensure you create an efficient, reliable, and safe lithium battery pack.

1. Define Your Requirements

  • Capacity and Voltage: Determine the energy capacity (measured in ampere-hours, Ah) and voltage (V) your application requires. This will depend on the power consumption of your device and how long you need it to operate between charges.
  • Size and Weight: Consider the physical space available and any weight constraints for your application.
  • Discharge Rate: Identify the maximum current draw your application will require. This affects the type of cells you choose, as different cells have different maximum discharge rates.

2. Designing Your Battery Case

  • 3D Magic: Before we get our hands dirty, we craft a 3D model of our battery case.
  • Choosing the Right Material:
    • Materials for the enclosure range from plastics, PC (Polycarbonate), ABS (Acrylonitrile Butadiene Styrene), to metals like aluminum and steel. Each material offers different benefits:
    • Plastics and ABS are lightweight and offer good resistance to impact and corrosion, making them suitable for portable devices.
    • PC combines the ease of manufacturing with strength and temperature resistance, ideal for demanding environments.
    • Aluminum and Steel enclosures are chosen for their durability and superior protection against physical damage. They also excel in thermal conductivity, helping with heat dissipation.

3. Choose the Right Lithium Cell Type

  • Lithium-Ion (Li-ion): Offers high energy density and is commonly used in portable electronics and electric vehicles.
  • Lithium Polymer (LiPo): Similar to Li-ion but can be made in slimmer profiles and various shapes. Often used in mobile devices and RC hobbies.
  • Lithium Iron Phosphate (LiFePO4): Known for its thermal stability, long cycle life, and safety, but with lower energy density. Ideal for applications where safety and longevity are priorities.

4. Design the Battery Pack Configuration

  • Series Configuration: Increases the voltage of the pack (V = number of cells in series × voltage of individual cell).
  • Parallel Configuration: Increases the capacity of the pack (Ah = number of cells in parallel × capacity of individual cell).
  • Combine series and parallel (S-P) configurations to meet both voltage and capacity requirements.

5. Battery Management System (BMS)

A BMS is crucial for protecting the battery from operating outside its safe operating area, including overcharging, deep discharging, and overheating. It also balances the charge across cells to improve performance and longevity.

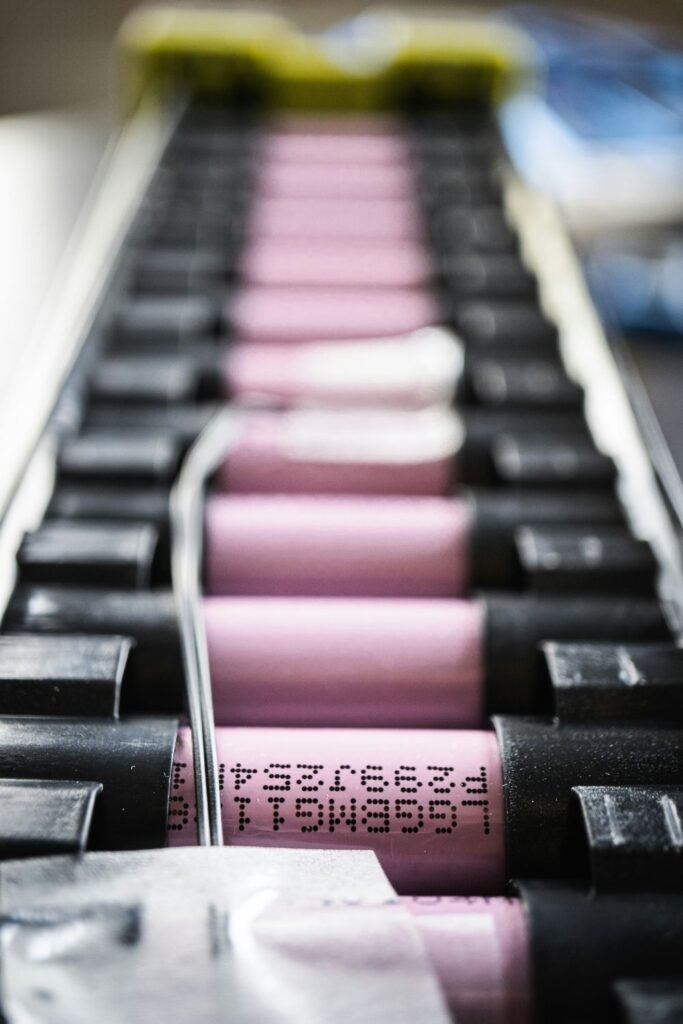

6. Assemble the Pack

  • Select Connectors and Wiring: Ensure they can handle the maximum current draw of your application.
  • Physical Assembly: Use a spot welder to connect cells together for robustness and reliability. Soldering is not recommended as it can damage cells due to heat.
  • Insulation and Protection: Use heat shrink tubing or a battery case to insulate and protect the assembled pack.

7. Safety Considerations

  • Ventilation: Ensure adequate ventilation around the battery pack to prevent overheating.
  • Protection Circuit: Incorporate a protection circuit to prevent short circuits and excessive current draw.
  • Regular Inspection: Regularly inspect the battery pack for any signs of damage or wear.

8. Testing and Validation

Before using your custom battery pack, test it under controlled conditions to ensure it meets the required specifications and operates safely.

9. Ensuring Safety and Compliance

Safety and compliance are paramount in the design and manufacturing of custom lithium battery packs. Obtaining the right certifications is essential to demonstrate that your battery pack meets international safety and quality standards. Here are some of the key certifications you may need to apply for:

  • UL1642 & UL2054: These Underwriters Laboratories (UL) standards assess the safety of lithium batteries and battery packs, covering aspects from construction to performance under various conditions.
  • IEC62133: This International Electrotechnical Commission (IEC) standard evaluates the safety of battery packs, including lithium systems, focusing on their protection against electrical, mechanical, and thermal abuses.
  • KC (Korea), PSE (Japan), and BIS (India): These country-specific certifications are required for selling battery products in these regions, ensuring compliance with local safety regulations.

If you’re uncertain about the specific certifications needed for your country, ProMax is here to assist. With extensive experience in helping customers import batteries, we’re well-equipped to guide you through the process. Don’t hesitate to reach out to us for expert support.

Visual Aids and Examples

To better understand these concepts, let’s consider a simple example. If you’re building a battery pack to power a 12V motor drawing 10A for 1 hour, you’d need a battery pack with at least 12V and 10Ah capacity. Using 18650 Li-ion cells with 3.7V and 2.5Ah each, you could configure them in a 4S4P (4 series, 4 parallel) configuration to achieve a 14.8V (3.7V × 4) and 10Ah (2.5Ah × 4) battery pack.
