What is A lithium battery and lithium cell?

Table of Contents

Nowadays, lithium batteries have strolled in our lives, most of the electronic products contain lithium batteries, such as smart phones often used, EV-car, tws earphones, bluetooth speakers, outdoor portable powers, lighting torch etc., we basically can not leave it. Before understanding lithium batteries, we need to first understand the lithium battery cell.

1.What is A lithium cell?

Generally speaking, it is a rechargeable battery that utilizes reversible intercalation of Li+ ions in a conducting solid to store energy,with carbon material as the anode and a lithium-containing compound as the positive electrode, there is no lithium metal present, only lithium ions, and this is a lithium ion cell.

Two types of lithium batteries are currently very popular, one is cylindrical lithium ion cells, like 18650,26650,21700,32600 etc.

lithium ion battery cell 21700 5000mah
lithium ion battery cell 21700 5000mah

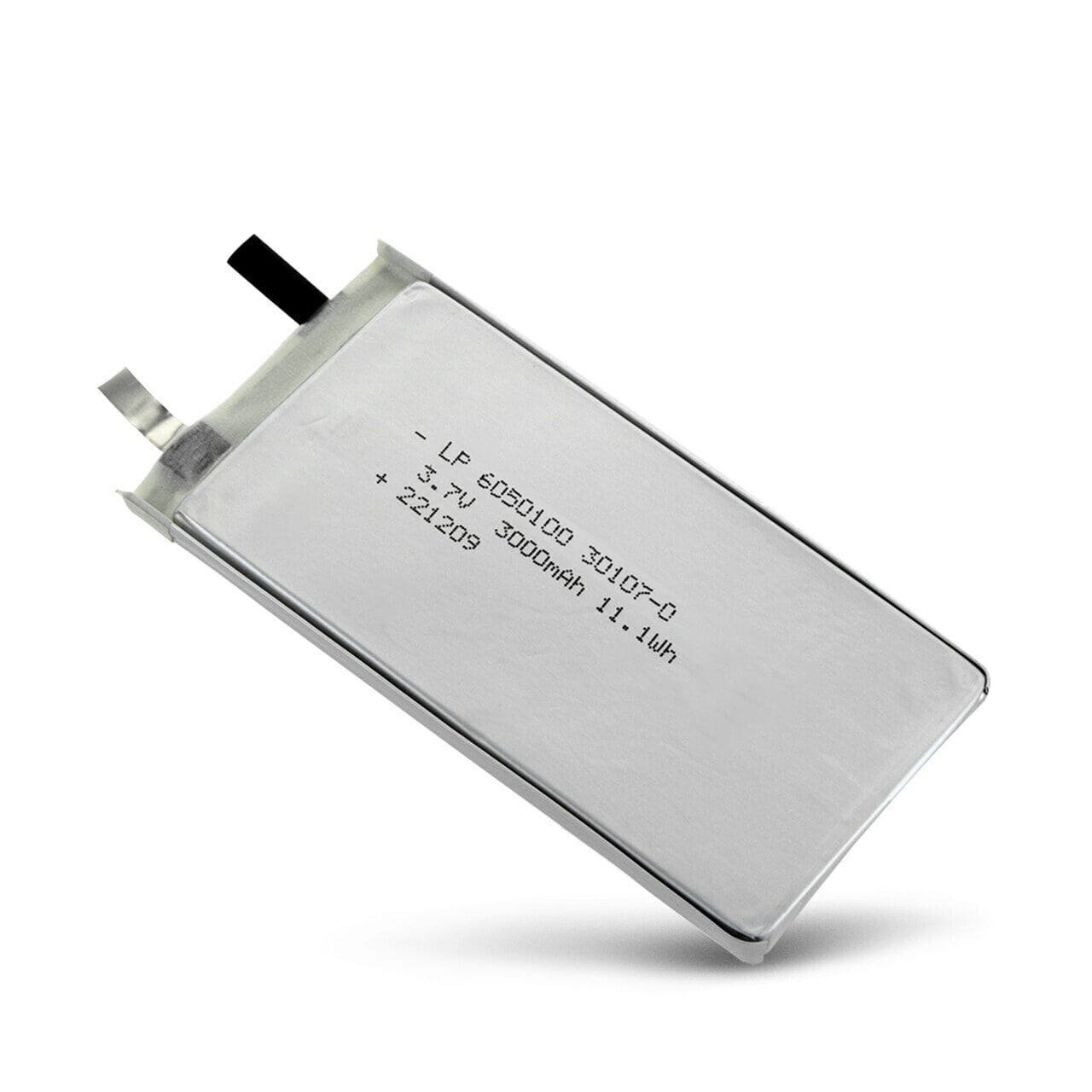

The other one is Li-polymer cells


2.What is the working principle of a lithium cell?

working
working principle of a lithium cell

1).Disharging Process :

  • When the battery is discharging, the lithium ions move from the anode (negative electrode) to the cathode (positive electrode) through the electrolyte.
  • During this process, the anode material (typically graphite) releases lithium ions and electrons. The electrons flow through the external circuit, generating electric current to power devices, while the lithium ions migrate through the electrolyte towards the cathode.

2).ChargingProcess:

  • When the battery is charging, an external voltage source is applied, reversing the flow of lithium ions.
  • Lithium ions are extracted from the cathode material (usually lithium metal oxides or phosphates) and move back to the anode.
  • At the same time, electrons from the external circuit are forced back into the anode, completing the electrochemical reaction.

3.What is the structure of a lithium cell?

1).Anode (Negative Electrode):

  • The anode is usually made of graphite or other carbon-based materials. Graphite is chosen for its ability to intercalate lithium ions during charging and release them during discharging.
  • It serves as the source of lithium ions during discharge and absorbs lithium ions during charging.

2).Cathode (Positive Electrode):

  • The cathode is composed of lithium metal oxides or phosphates, such as lithium cobalt oxide (LiCoO2), lithium iron phosphate (LiFePO4), or lithium manganese oxide (LiMn2O4).
  • During discharge, the cathode releases lithium ions, which migrate through the electrolyte towards the anode. During charging, the cathode absorbs lithium ions.

3).The separator, typically made of porous materials, prevents direct contact between the anode and cathode to avoid short circuits while allowing the flow of lithium ions.

4.)The electrolyte, a lithium salt dissolved in organic solvents, facilitates the movement of lithium ions between the electrodes.

4.What is A Lithium battery or battery pack?

It consists of multiple individual lithium batteries or cells connected together in a series, parallel, or combination of both to achieve the desired voltage, capacity, and power output. It can be 3.7V,which means it can be one cell with PCM or several cells in parallel to increase the battery capacity, also can be 7.4V,14.8V, 24V,36V,51.2V etc.Battery packs are often enclosed in protective casings and equipped with features such as battery management systems (BMS) to monitor and control the charging and discharging processes, ensuring safe and efficient operation.

While a lithium battery refers to a single cell or unit, a battery pack is a collection of multiple cells arranged in a specific configuration to provide the required voltage, capacity, and power for various applications.

vacuum cleaner battery for rowenta rh8753, rh875301/9a0, 2210017128, replaces rs rh5233, ni mh, 18v, 3000mah
vacuum cleaner battery for rowenta rh8753, rh875301/9a0, 2210017128, replaces rs rh5233, ni mh, 18v, 3000mah


5.The advantages of lithium batteries

1).High Energy Density:

Lithium batteries have one of the highest energy densities among rechargeable battery chemistries. This means they can store a significant amount of energy in a relatively small and lightweight package, making them ideal for portable electronic devices and electric vehicles where space and weight are critical factors.

2).Long Cycle Life:

Lithium batteries typically have a longer cycle life compared to other rechargeable batteries, compared to lead-acid and nickel-based batteries. They can withstand 300 or 1000 charge and discharge cycles without significant degradation in performance, resulting in longer-lasting power sources for electronic devices and reducing the need for frequent replacements.

3).Fast Charging:

Lithium batteries support fast charging capabilities, such as 1C or even more, allowing them to recharge quickly compared to other battery chemistries. This feature is particularly advantageous for users who require rapid turnaround times for their devices, enhancing convenience and productivity.

4).Low Self-Discharge Rate:

Lithium batteries exhibit a low self-discharge rate, meaning they retain their charge for longer periods when not in use compared to other battery types.

5).Wide Operating Temperature Range:

Normally, Lithium batteries can be discharged at -20­°C to 60­°C. Sometimes it is necessary to discharge the battery at -40°C or store the battery at 85 40°C as per customers requirements.

6).Versatility and Customization:

Lithium battery can be customized to meet specific voltage, capacity, and size requirements for various applications. This flexibility allows us to design batteries tailored to the unique needs of different devices and industries, enabling innovation and optimization of performance.

7).Environmentally Friendly:

Compared to traditional battery chemistries like lead-acid and nickel-cadmium, lithium batteries are more environmentally friendly due to their lower toxicity and reduced reliance on heavy metals. Additionally, advancements in recycling technologies make it possible to recover and reuse valuable materials from spent lithium batteries, minimizing environmental impact and promoting sustainability.

bluetooth speaker battery replacement for jbl pulse 5, replaces gsp 1s3p ch4d, li ion,3.7v,10200mah,37.74wh
bluetooth speaker battery replacement for jbl pulse 5, replaces gsp 1s3p ch4d, li ion,3.7v,10200mah,37.74wh

1).Lithium Cobalt Oxide (LiCoO2):

  • LiCoO2 is one of the earliest and most widely used cathode materials in lithium-ion batteries, particularly in consumer electronics like smartphones, laptops, and digital cameras.
  • It offers high energy density, making it suitable for applications where compact size and lightweight are essential.
  • However, LiCoO2 batteries have limitations in terms of thermal stability and safety, as they are prone to overheating and thermal runaway under certain conditions. This has led to the exploration of alternative cathode materials with improved safety profiles.

2).Lithium Iron Phosphate (LiFePO4):

  • LiFePO4 has gained popularity as a cathode material for lithium-ion batteries due to its enhanced safety, stability, and longevity compared to LiCoO2.
  • It exhibits excellent thermal stability and is less prone to thermal runaway, making it a preferred choice for applications where safety is paramount, such as electric vehicles (EVs), power tools, and grid energy storage systems.
  • While LiFePO4 batteries have a slightly lower energy density compared to LiCoO2, they compensate for it with their superior safety and long cycle life, making them ideal for demanding and high-performance applications.

In recent years, lithium-ion batteries (Li-ion and LiFe PO4) and lithium polymer batteries (LiPo) have gained significant popularity due to their superior performance and versatility. Lithium batteries, in particular, have become the standard choice for portable electronics and electric vehicles, offering higher energy density and better stability compared to other battery chemistries.

Their innovative design, coupled with ongoing research and development efforts, continue to enhance their performance, cost-effectiveness, and safety profile, making them indispensable in today’s energy landscape.

We are ProMax, a leading lithium battery company in China. We’ve helped many clients wholesale and customize lithium batteries from China. If you want to import lithium batteries from China, please feel free to CONTACT US.
